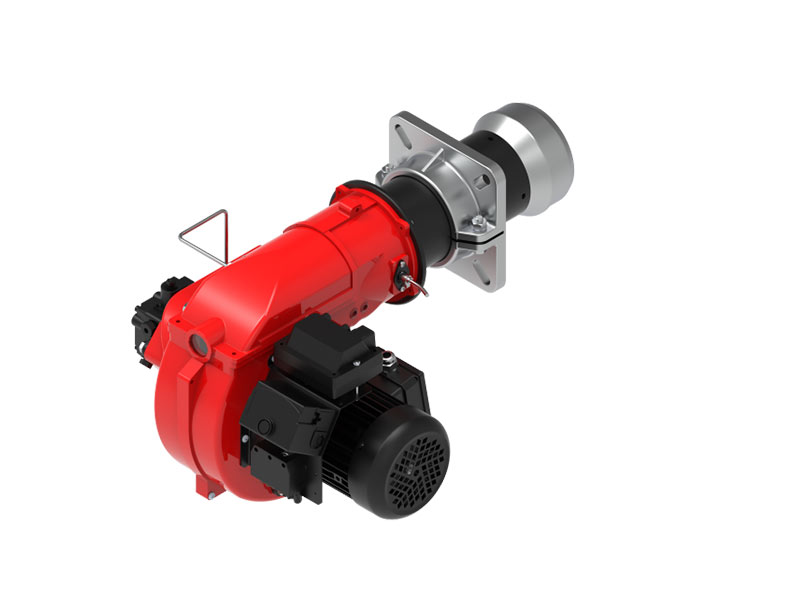

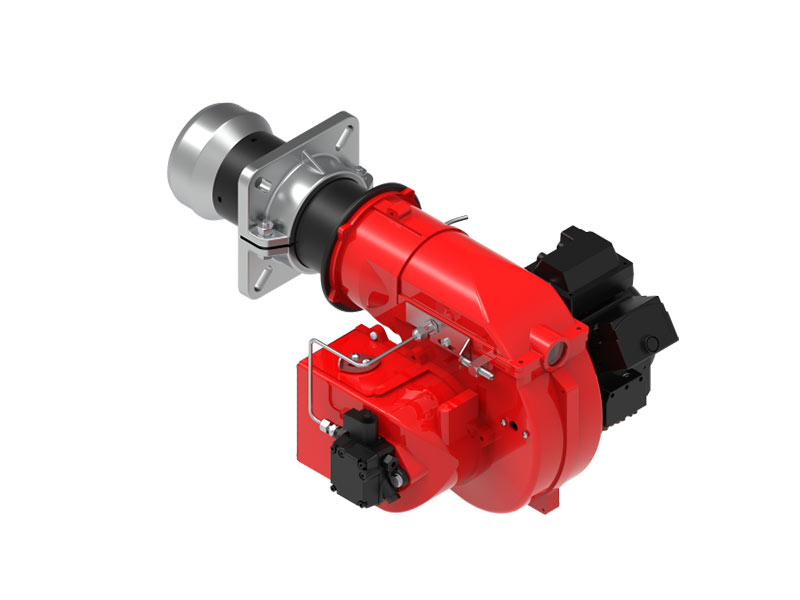

BT18-35L/LR Series

Name: BT18-35LLR Series
Rating: 5 (224 reviews)

Single / Two-Stage Light Oil Burner
Power From 90 To 391 kW

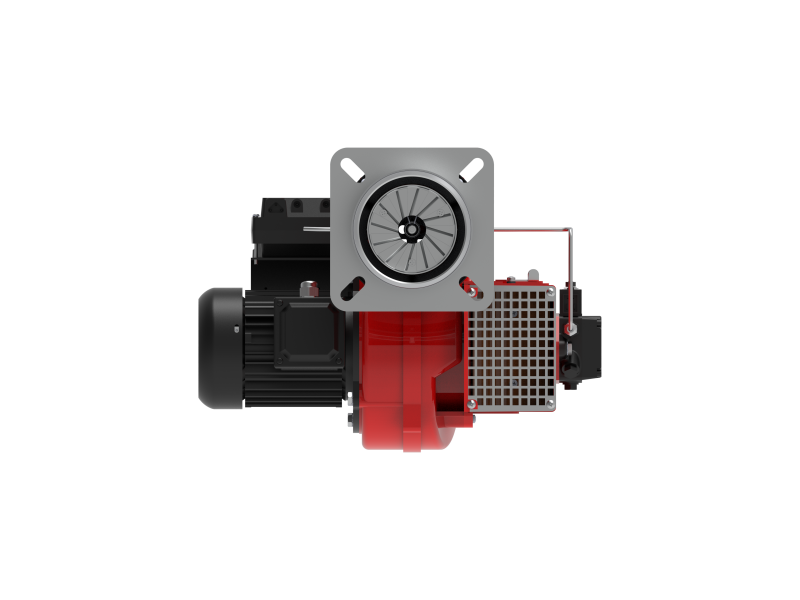

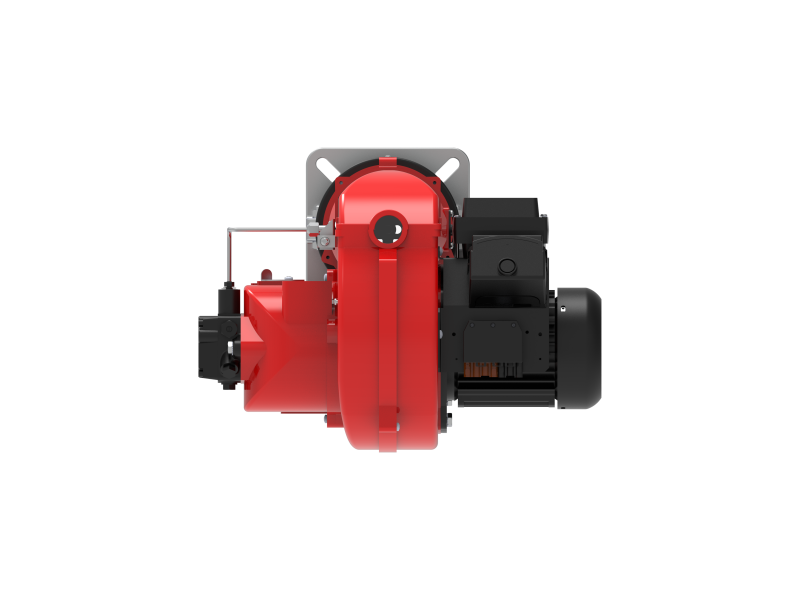

3D Model

Click to view 3D model

High pressure mechanical atomisation of fuel using nozzle.
Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
No need to remove the burner from the boiler, you can directly remove the atomization device, easy maintenance.
Single-stage manual air flow regulation lt is adjusted air flow manually at 1st fire.
Two-stage fire hydraulic regulator for the first and second stage fire air flow regulation.
A flange and an insulating sealing ring are used to link and fix the boiler.

Combustion air inlet with flow regulating device.
Sliding flanges paired with various boiler flanges can adjust the position of the burner into the boiler.
Adjustable combustion head with steel blast tube and flame disc
Single-phase motor drives fan and oil pump.
Photoresistor detects flame.
Electrical plant protection rating IP40.

Parameters

1. General

Model	Article No.	Power(kW)	Power supply	Motor power(kW)	Package size(LWH/mm)	Weight(kg)
BT18L	201 20 108	90~213	230V 50Hz	0.37	665x515x390mm	21
BT18LR	201 20 118	90~213	230V 50Hz	0.37	665x515x390mm	22.5
BT26L	201 20 109	154~308	230V 50Hz	0.37	665x515x390mm	21
BT26LR	201 20 202	154~308	230V 50Hz	0.37	665x515x390mm	22.5
BT35L	201 20 111	178~391	230V 50Hz	0.37	665x515x390mm	22.5
BT35LR	201 20 204	178~391	230V 50Hz	0.37	665x515x390mm	23.5

Model	A1	A2	B1	B2	C	D	E	N	I	L	M
Model	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	M
BT18L	215	248	253	93	620	105~200	119	130	186	170-210	4-M10
BT18LR	215	248	253	93	620	105~200	119	130	186	170-210	4-M10
BT26L	215	248	253	93	620	105~200	138	145	186	170-210	4-M10
BT26LR	215	248	253	93	620	105~200	138	145	186	170-210	4-M10
BT35L	215	248	253	108	620	105~200	155	165	216	200-245	4-M12
BT35LR	215	248	253	108	620	105~200	155	165	216	200-245	4-M12

BT18-35L/LR Catalogue

2025-09

1. Do you have any working videos?

If you need operation videos, we can film a test run for you before shipping. If we have stock, we can shoot a video.
2. How does it operate? Is there a manual?

We have installation and operation manuals.
3. Is there a circuit diagram?

Yes. We can send it if needed.
4. Do you have any certificates?

We have CE certification and ISO9001.
5. How long is the warranty period?

The domestic parts on the burner are warranted for 1 year, and imported parts (such as SEIMENS) are not covered by warranty.
6. What if there is a problem with the burner when we are abroad?

We can provide remote online video guidance to identify and resolve your issue promptly.
