BTN15-30GL Series

Single-Stage Dual-Fuel Burner
Power From 50 To 280 kW

Options

  • Single-stage

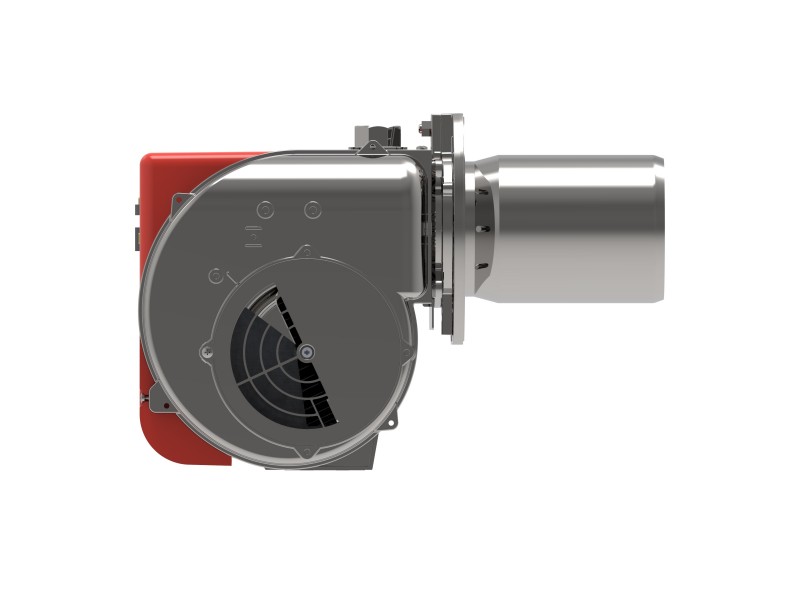

Side view of the BTN15-30GL Series Gas Burner with extended combustion head.

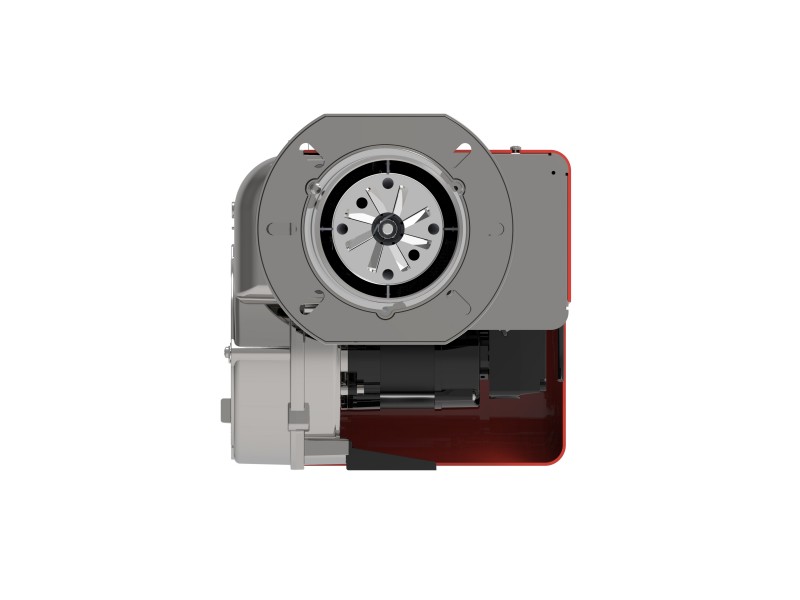

Front view of the BTN15-30GL Series Gas Burner, showing the burner head, combustion outlet and air inlet structure.

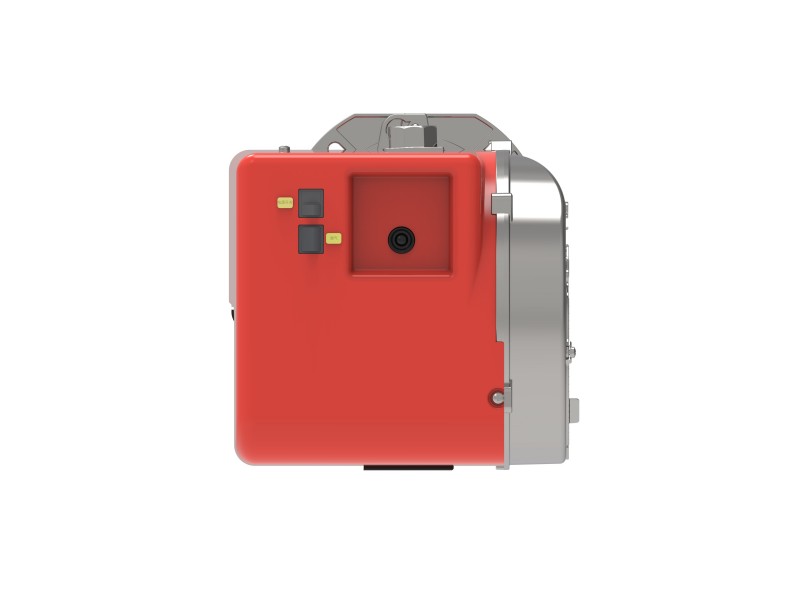

Opposite side view of the BTN15-30GL Series Gas Burner with straight combustion head connection.

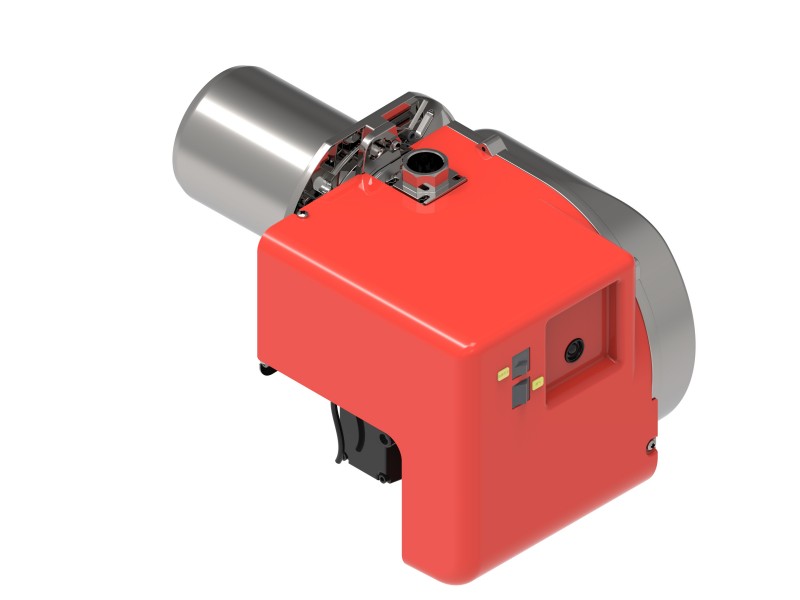

45-degree side view of the BTN15-30GL Series Gas Burner with red housing and combustion head.
Rear side view of the BTN15-30GL Series Gas Burner with side-mounted air section.

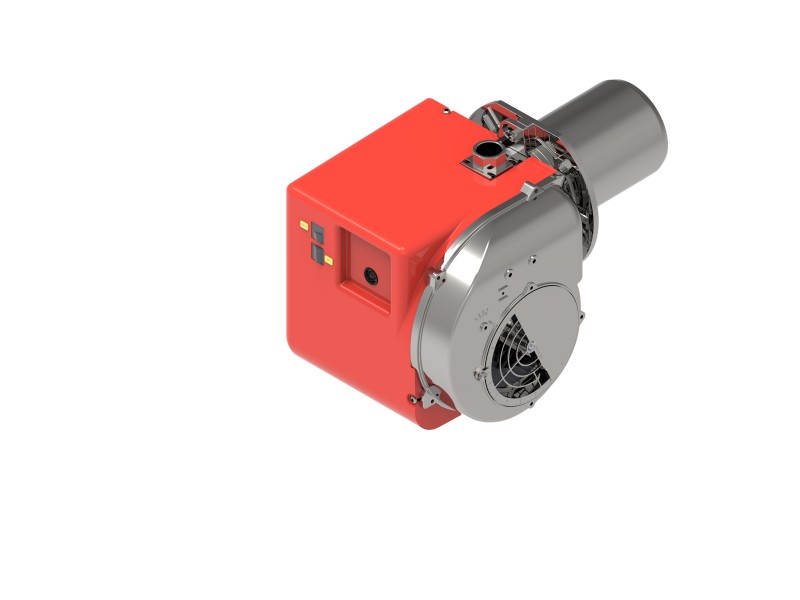

Isometric 45-degree view of the BTN15-30GL Series Gas Burner with rear air fan section.
BTN15-30GL Series video cover image
3D Model Main features Parameters Download FAQ You May Also Like Contact Us

3D Model

Click to view 3D model

Main features

  • Air-gas mixing at blast-pipe.
  • Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
  • Do not need to remove the installation of flange and combustion cylinder, it can be directly removed burner.
  • Manual flow adjustment.
  • Using a flange and high temperature resistant heat insulation pads connected to the boiler.
  • Combustion air intake with air flow adjustment device.
  • Adjustable blast-pipe with stainless steel nozzle and deflector disk in steel.
  • Momophase electric motor to run fan and pump.
  • Flame presence check by photo resistance and ionisation electrode.
  • Electrical plant protection rating Ip40
  • Plastic protection cover.

Parameters

1. General

Model Article No. Power(kW) Power supply Motor power(kW) Package size(L*W*H/mm) Weight(kg)
BTN15GL 202 23 013 50~160 230V 50Hz 0.2 525X365X380 12
BTN20GL 202 23 014 60~205 230V 50Hz 0.2 525X365X380 12
BTN30GL 202 23 015 100~280 230V 50Hz 0.25 525X365X380 12.5

2. Dimension

BTN15-30GL Series dimensional drawing
Model A1 A2 B1 B2 C D E F G H I L N
mm mm mm mm mm mm mm mm mm mm mm mm mm
BTN15GL 157 137 204 98 438 162 114 72 G1" 144 195-220 160-190 124
BTN20GL 157 137 204 98 445 169 125 72 G1" 144 195-220 160-190 135
BTN30GL 157 137 204 98 445 169 125 72 G1" 144 195-220 160-190 135

3. Curve

BTN15-30GL Series technical size reference image

Download

FAQ

  • 1. Do you have any working videos?

  • 2. How does it operate? Is there a manual?

  • 3. Is there a circuit diagram?

  • 4. Do you have any certificates?

  • 5. How long is the warranty period?

  • 6. What if there is a problem with the burner when we are abroad?
