BTN15-30L/LR Series

Single / Two-Stage Light Oil Burner
Power From 6 To 310 kW

Options

  • Single-stage
  • Two-stage
Side view of the BTN15-30L/LR Series Light Oil Burner with extended combustion head.

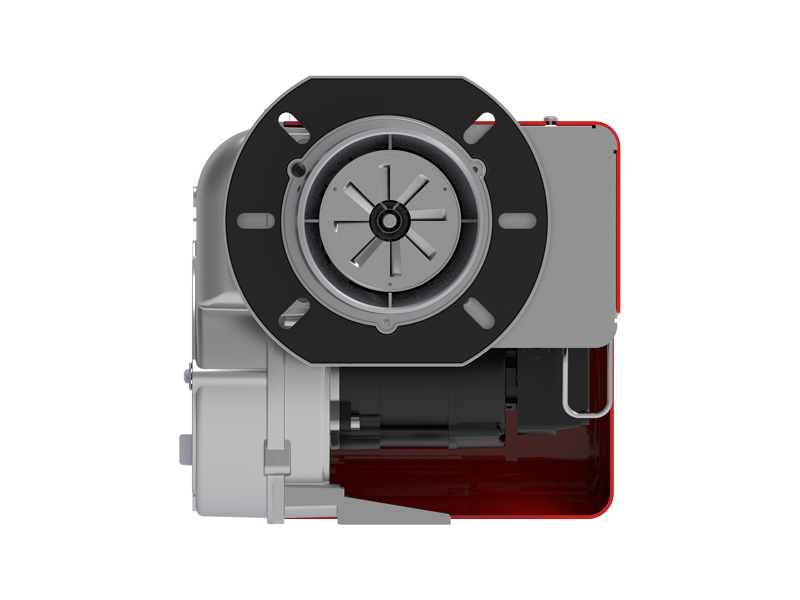

Front view of the BTN15-30L/LR Series Light Oil Burner, showing the burner head, combustion outlet and air inlet structure.

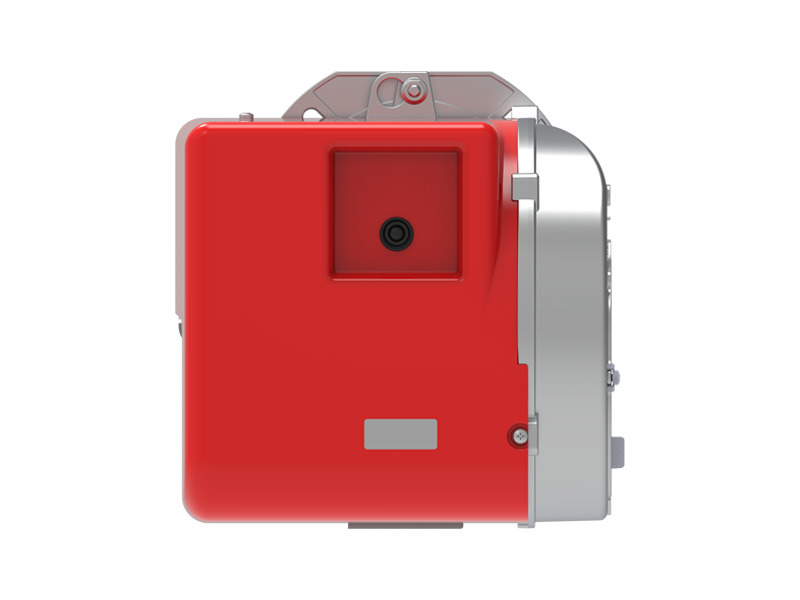

Opposite side view of the BTN15-30L/LR Series Light Oil Burner with straight combustion head connection.

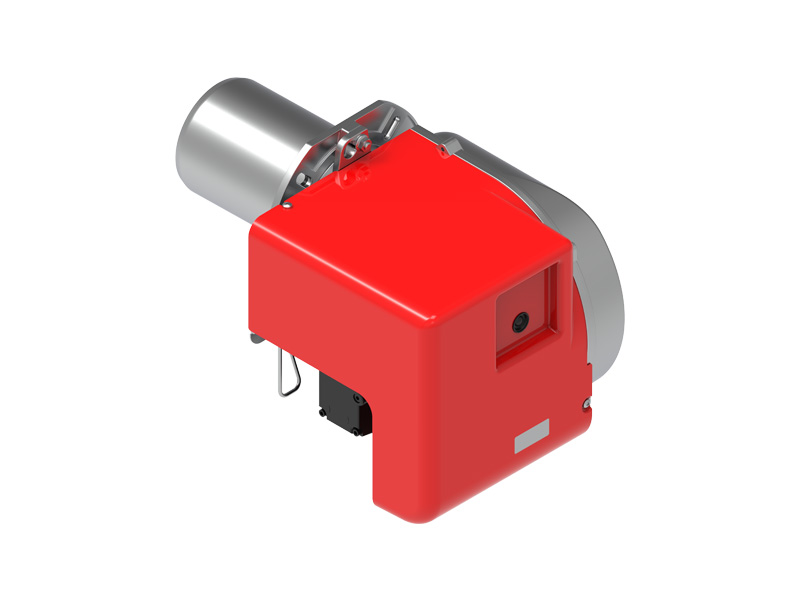

45-degree side view of the BTN15-30L/LR Series Light Oil Burner with red housing and combustion head.
Rear side view of the BTN15-30L/LR Series Light Oil Burner with side-mounted air section.

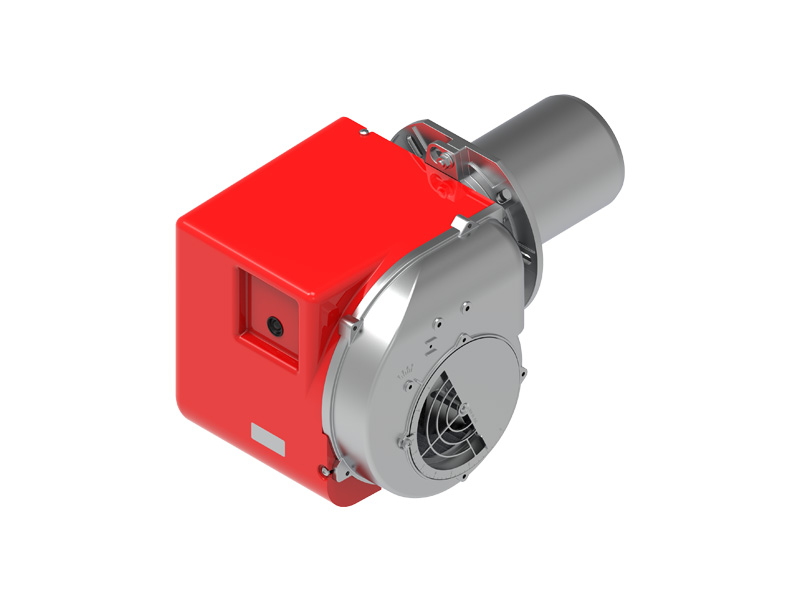

Isometric 45-degree view of the BTN15-30L/LR Series Light Oil Burner with rear air fan section.
BTN15-30L/LR Series video cover image
3D Model Main features Parameters Download FAQ You May Also Like Contact Us

3D Model

Click to view 3D model

Main features

  • High pressure mechanical atomisation of fuel using nozzle.
  • Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
  • Hinged connection, autonatie open comtrol, maintenance is convenient.
  • Single-stage Manual flow adjustment.
  • Two-stage air flow regulation for first and second stage by means of hydraulic regulator.
  • It adapts one flange and heat-resistance insulatedpad to connect with boiler.
  • Combustion air intake with air flow adjustment device.
  • Adjustable blast-pipe with stainless steel nozzle and deflector disk in steel.
  • Monophase electric motor to run fan and pump.
  • Flame presence check by photo resistance.
  • Electrical plant protection rating IP40.
  • Plastic protection cover.

Parameters

1. General

Model Article No. Power(kW) Power supply Motor power(kW) Package size(L*W*H/mm) Weight(kg)
BTN15L 202 22 013 83~166 230V 50Hz 0.2 525x365x380 13
BTN15R 202 20 020 83~166 230V 50Hz 0.2 525x365x380 14
BTN20L 202 22 014 118.6~216 230V 50Hz 0.2 525x365x380 13
BTN20LR 202 20 021 118.6~216 230V 50Hz 0.2 525x365x380 14
BTN30L 202 22 015 190~310 230V 50Hz 0.25 525x365x380 14
BTN30LR 202 20 022 190~310 230V 50Hz 0.25 525x365x380 14.5

2. Dimension

BTN15-30L/LR Series dimensional drawing
Model A1 A2 B1 B2 C D E N I L M
mm mm mm mm mm mm mm mm mm mm M
BTN15L 157 137 204 98 438 162 114 124 195-220 160-190 4-M8
BTN15LR 180 155 204 98 438 162 114 124 195-220 160-190 4-M8
BTN20L 157 137 204 98 445 169 125 135 195-220 160-190 4-M8
BTN20LR 180 155 204 98 445 169 125 135 195-220 160-190 4-M8
BTN30L 157 137 204 98 445 169 125 135 195-220 160-190 4-M8
BTN30LR 180 155 204 98 445 169 125 135 195-220 160-190 4-M8

3. Curve

BTN15-30L/LR Series technical size reference image
