BTN350-650GLE BLU Series

Two-Stage Light Oil Burner
Power From 600 To 6155 kW

Options

  • Electronic Modulation

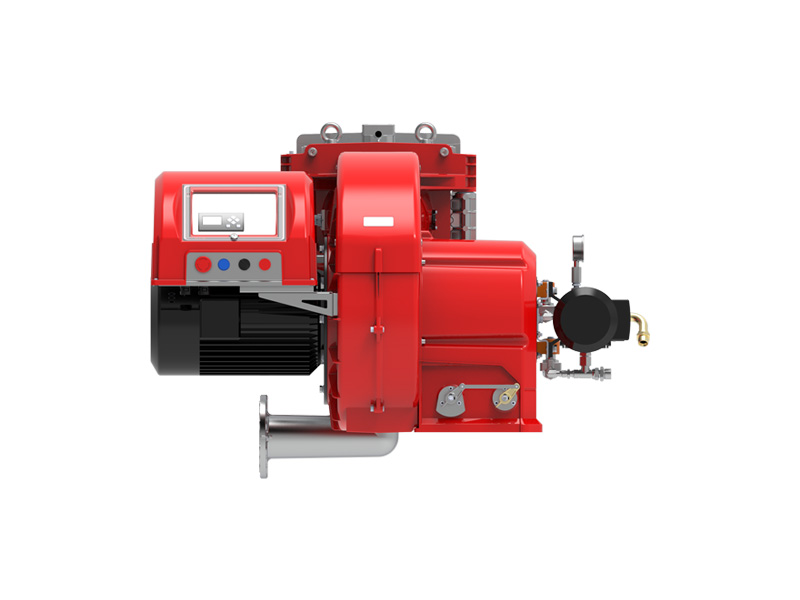

Side view of the BTN350-650GLE BLU Series Gas Burner with extended combustion head.

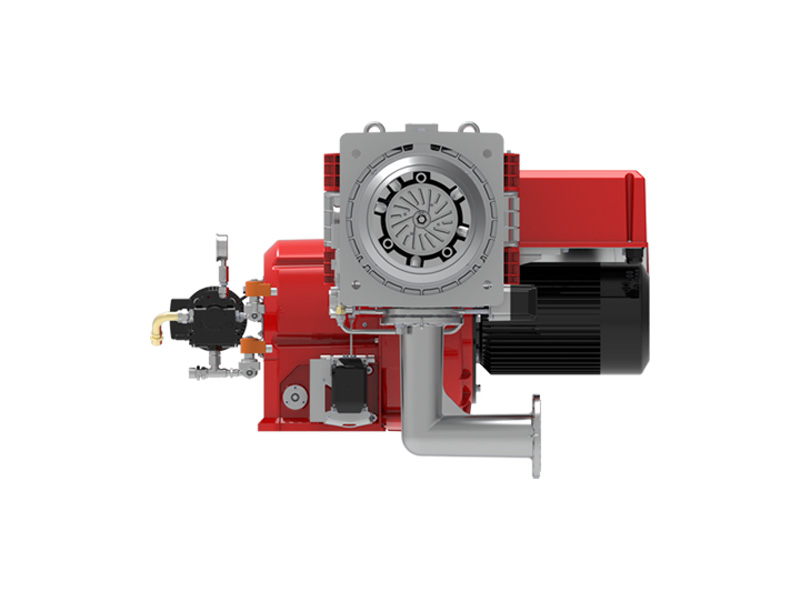

Front view of the BTN350-650GLE BLU Series Gas Burner, showing the burner head, combustion outlet and air inlet structure.
Opposite side view of the BTN350-650GLE BLU Series Gas Burner with straight combustion head connection.

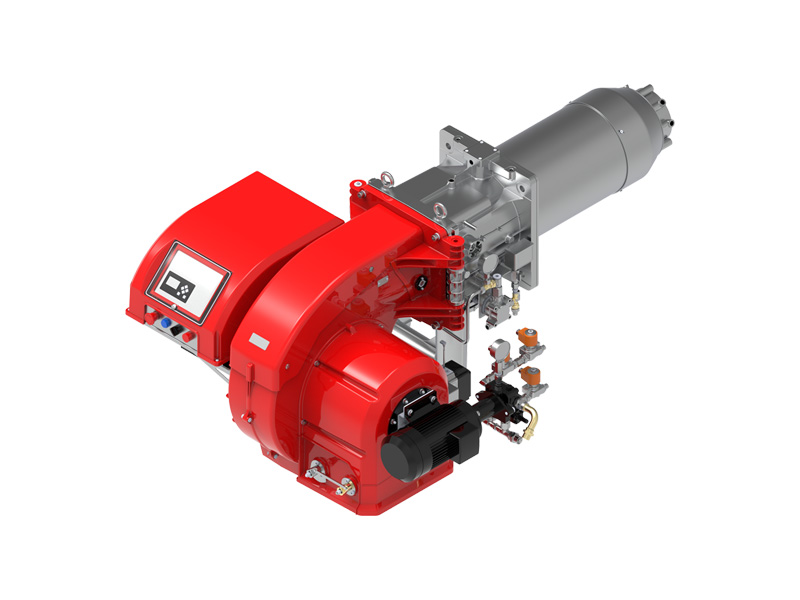

45-degree side view of the BTN350-650GLE BLU Series Gas Burner with red housing and combustion head.

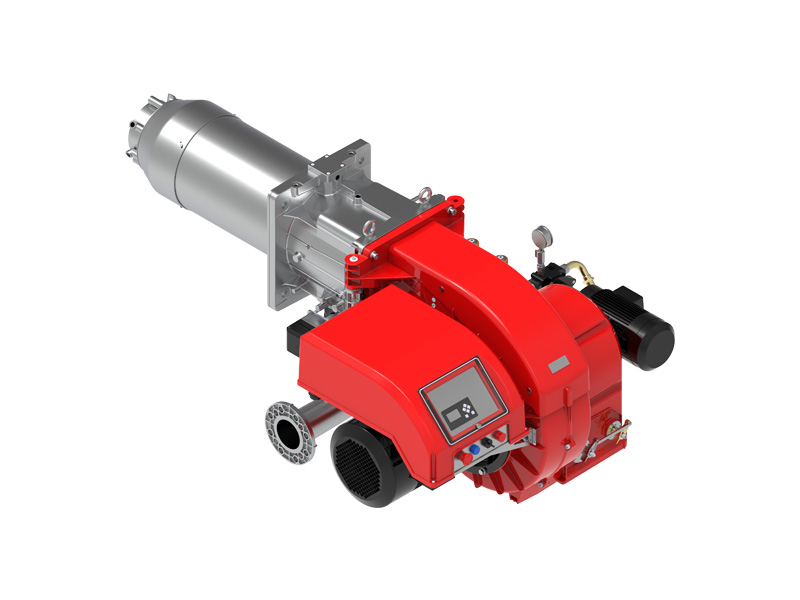

Rear side view of the BTN350-650GLE BLU Series Gas Burner with side-mounted air section.
Isometric 45-degree view of the BTN350-650GLE BLU Series Gas Burner with rear air fan section.
BTN350-650GLE BLU Series video cover image
3D Model Main features Parameters Download FAQ You May Also Like Contact Us

3D Model

Click to view 3D model

Main features

  • Air-gas mixing at blast-pipe and high-pressure mechanical atomisation of fuel using nozzle.
  • Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
  • Maintenance facilitated by the fact that the mixing unit and the atomisation unit can be removed without having to remove the burner from the boiler.
  • Electronic proportional Using three-phase servomotor respectively to control ratio adjustion among gas, oil and air.
  • Hinged connection, can be opened naturally, easy maintenance.
  • Combustion air intake with air flow adjustment device.
  • Burner air inlet with mute design.
  • High temperature resistant stainless steel disc burner flame.
  • Independent motor drives oil pump.
  • UV ultraviolet phototube detects flame.
  • Electrical plant protection rating Ip40.

Parameters

1. General

Model Article No. Power(kW) Power supply Motor power(kW) Package size(L*W*H/mm) Weight(kg)
BTN350GLE BLU 203 23 176 600~3600 380V 50Hz 7.5+1.5 / /
BTN450GLE BLU 203 23 177 640~4200 380V 50Hz 9.2+1.5 / /
BTN550GLE BLU 203 23 178 600~5170 380V 50Hz 12+1.5 / /
BTN650GLE BLU 203 23 179 1000~6155 380V 50Hz 15+1.5 / /

2. Dimension

BTN350-650GLE BLU Series dimensional drawing
Model A1 A2 B1 B2 C C1 D E F G H I L M N
mm mm mm mm mm mm mm mm mm mm mm mm mm M mm
BTN350 GLE BLU 556 823 519 239 1775 700 534 312.5 178 DN65 528 400 452 4-M16 350
BTN450 GLE BLU 556 823 519 239 1775 700 534 312.5 178 DN65 528 400 452 4-M16 350
BTN550 GLE BLU 583 823 519 239 1775 700 534 312.5 178 DN65 528 400 452 4-M16 350
BTN650 GLE BLU 583 823 519 239 1775 700 534 336 178 DN65 528 400 452 4-M16 350

3. Curve

BTN350-650GLE BLU Series technical size reference image

Download

Typology
Edition
Available documents
BTN350-650GLE BLU Catalogue
2025-09
CN/EN - Download
