BTN40-55L/LR Series

Single / Two-Stage Light Oil Burner
Power From 97 To 485 kW

Options

  • Single-stage
  • Two-stage

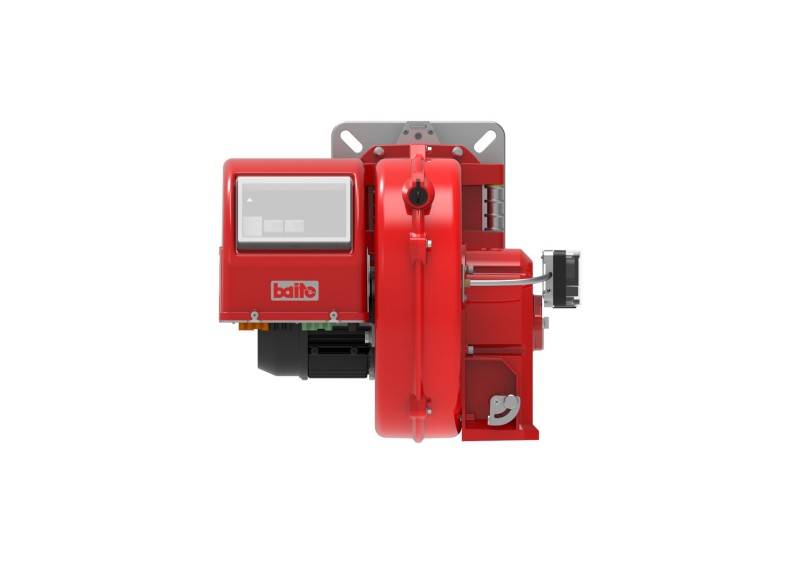

Side view of the BTN40-55L/LR Series Light Oil Burner with extended combustion head.

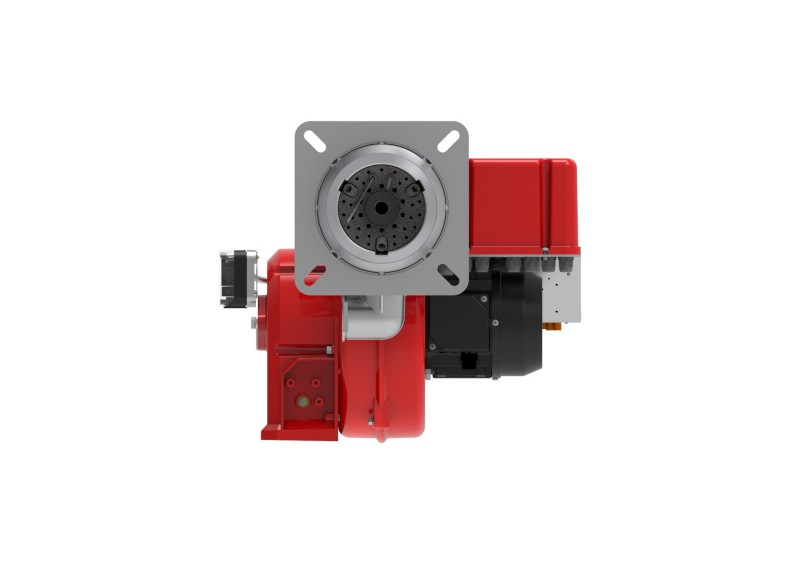

Front view of the BTN40-55L/LR Series Light Oil Burner, showing the burner head, combustion outlet and air inlet structure.
Opposite side view of the BTN40-55L/LR Series Light Oil Burner with straight combustion head connection.

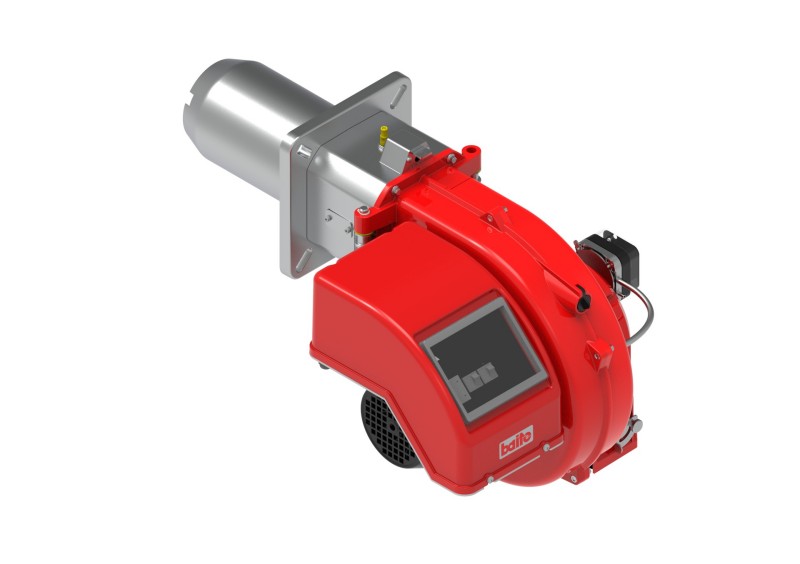

45-degree side view of the BTN40-55L/LR Series Light Oil Burner with red housing and combustion head.
Rear side view of the BTN40-55L/LR Series Light Oil Burner with side-mounted air section.

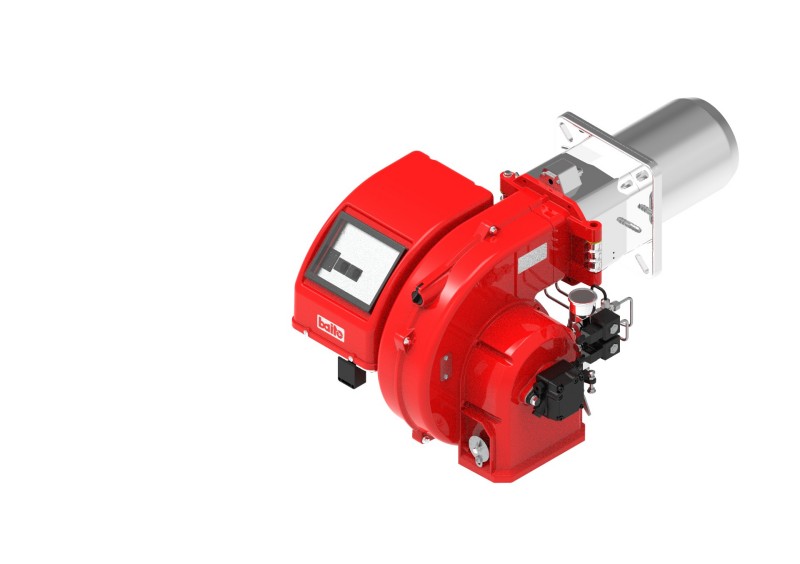

Isometric 45-degree view of the BTN40-55L/LR Series Light Oil Burner with rear air fan section.
BTN40-55L/LR Series video cover image
3D Model Main features Parameters Download FAQ You May Also Like Contact Us

3D Model

Click to view 3D model

Main features

  • High pressure mechanical atomisation of fuel using nozzle.
  • Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
  • Hinged connection, autonatie open comtrol, maintenance is convenient.
  • Single-stage Manual flow adjustment.
  • Two-stage air flow regulation for first and second stage by means of hydraulic regulator.
  • It adapts one flange and heat-resistance insulatedpad to connect with boiler.
  • Combustion air intake with air flow adjustment device.
  • Adjustable blast-pipe with stainless steel nozzle and deflector disk in steel.
  • Monophase electric motor to run fan and pump.
  • Flame presence check by photo resistance.
  • Electrical plant protection rating IP40.
  • Plastic protection cover.

Parameters

1. General

Model Article No. Power(kW) Power supply Motor power(kW) Package size(L*W*H/mm) Weight(kg)
BTN40L 202 20 016 97~395 230V 50Hz 0.45 645x600x472 /
BTN40LR 202 20 023 97~395 230V 50Hz 0.45 645x600x472 28
BTN55L 202 20 017 155~485 230V 50Hz 0.45 645x600x472 /
BTN55LR 202 20 024 155~485 230V 50Hz 0.45 645x600x472 28

2. Dimension

BTN40-55L/LR Series dimensional drawing
Model A1 A2 B1 B2 C D E N I L M
mm mm mm mm mm mm mm mm mm mm M
BTN40L 253 215 297 110 693 210 160 170 218-260 220 4-M10
BTN40LR 253 215 297 110 693 210 160 170 218-260 220 4-M10
BTN55L 253 215 297 110 693 210 160 170 218-260 220 4-M10
BTN55LR 253 215 297 110 693 210 160 170 218-260 220 4-M10

3. Curve

BTN40-55L/LR Series technical size reference image
