BTN5-12L/LR Series

Single / Two-Stage Light Oil Burner
Power From 20 To 130 kW

Options

  • Single-stage
  • Two-stage

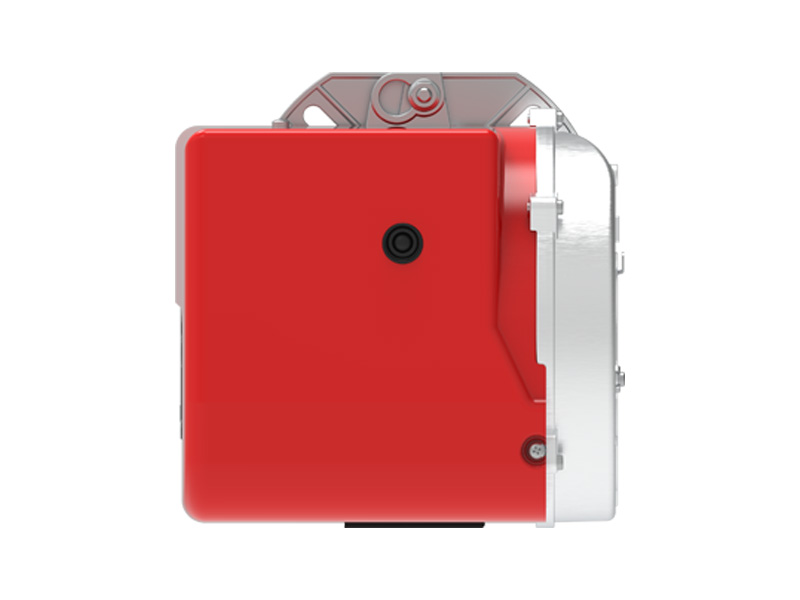

Side view of the BTN5-12L/LR Series Light Oil Burner with extended combustion head.

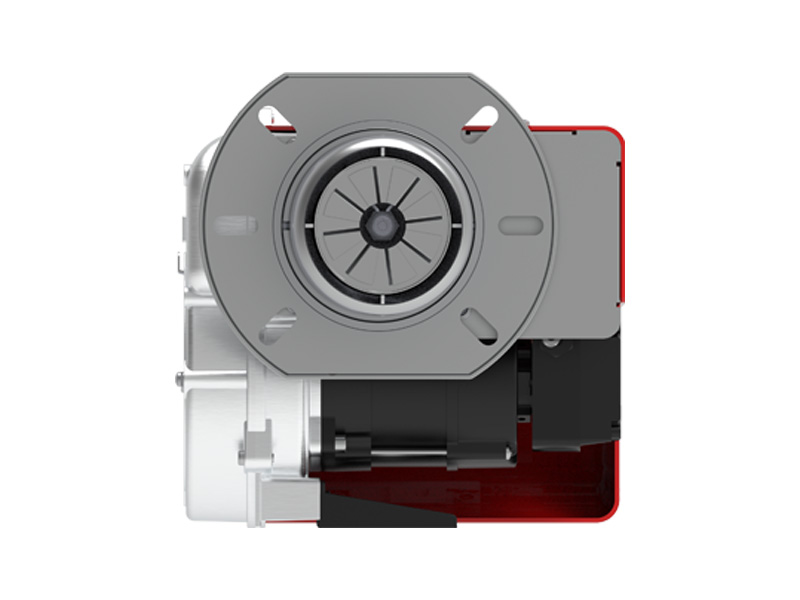

Front view of the BTN5-12L/LR Series Light Oil Burner, showing the burner head, combustion outlet and air inlet structure.
Opposite side view of the BTN5-12L/LR Series Light Oil Burner with straight combustion head connection.

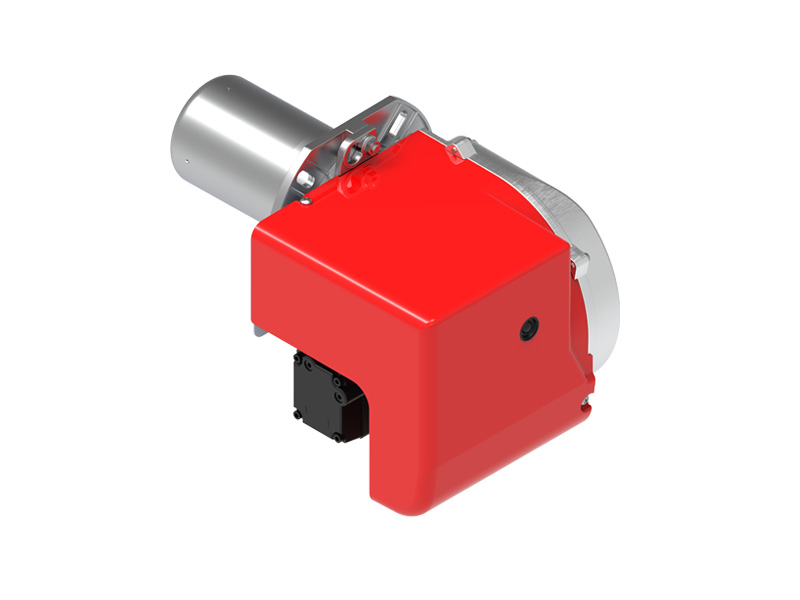

45-degree side view of the BTN5-12L/LR Series Light Oil Burner with red housing and combustion head.
Rear side view of the BTN5-12L/LR Series Light Oil Burner with side-mounted air section.

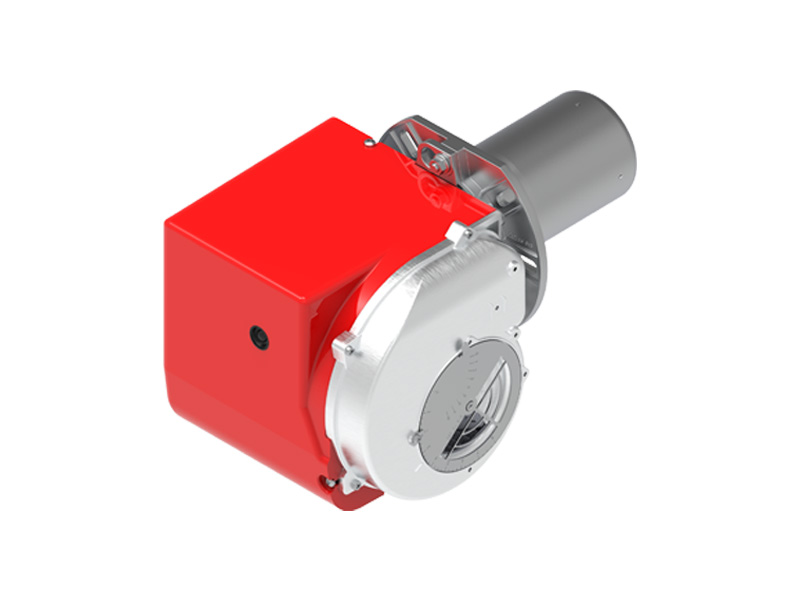

Isometric 45-degree view of the BTN5-12L/LR Series Light Oil Burner with rear air fan section.
BTN5-12L/LR Series video cover image
3D Model Main features Parameters Download FAQ You May Also Like Contact Us

3D Model

Click to view 3D model

Main features

  • High pressure mechanical atomisation of fuel using nozzle.
  • Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
  • Hinged connection, autonatie open comtrol,maintenance is convenient.
  • Single-stage Manual flow adjustment.
  • Two-stage air flow regulation for first and second stage by means of hydraulic regulator.
  • It adapts one flange and heat-resistance insulatedpad to connect with boiler.
  • Combustion air intake with air flow adjustment device.
  • Adjustable blast-pipe with stainless steel nozzle anddeflector disk in steel.
  • Monophase electric motor to run fan and pump.
  • Flame presence check by photoresistance.
  • Electrical plant protection rating IP40.
  • Plastic protection cover.

Parameters

1. General

Model Article No. Power(kW) Power supply Motor power(kW) Package size(L*W*H/mm) Weight(kg)
BTN5L 202 20 210 20~59 230V 50Hz 0.1 420x360x315 10
BTN5LR 201 20 281 20~59 230V 50Hz 0.1 420x360x315 /
BTN8L 202 20 211 47~105 230V 50Hz 0.1 420x360x315 10
BTN8LR 201 20 282 47~105 230V 50Hz 0.1 420x360x315 /
BTN12L 202 20 212 60~130 230V 50Hz 0.13 420x360x315 10.5
BTN12LR 201 20 283 60~130 230V 50Hz 0.13 420x360x315 /

2. Dimension

BTN5-12L/LR Series dimensional drawing
Model A1 A2 B1 B2 C D E N I L M
mm mm mm mm mm mm mm mm mm mm M
BTN5L 135 110 164 83 385 157 95 105 166-194 140-168 4-M8
BTN5LR 143 130 164 83 385 157 95 105 166-194 140-168 4-M8
BTN8L 135 110 164 83 385 157 97 105 166-194 140-168 4-M8
BTN8LR 143 130 164 83 385 157 97 105 166-194 140-168 4-M8
BTN12L 135 110 164 83 385 157 97 105 166-194 140-168 4-M8
BTN12LR 143 130 164 83 385 157 97 105 166-194 140-168 4-M8

3. Curve

BTN5-12L/LR Series technical size reference image

Download

FAQ

  • 1. Do you have any working videos?

  • 2. How does it operate? Is there a manual?

  • 3. Is there a circuit diagram?

  • 4. Do you have any certificates?

  • 5. How long is the warranty period?

  • 6. What if there is a problem with the burner when we are abroad?
