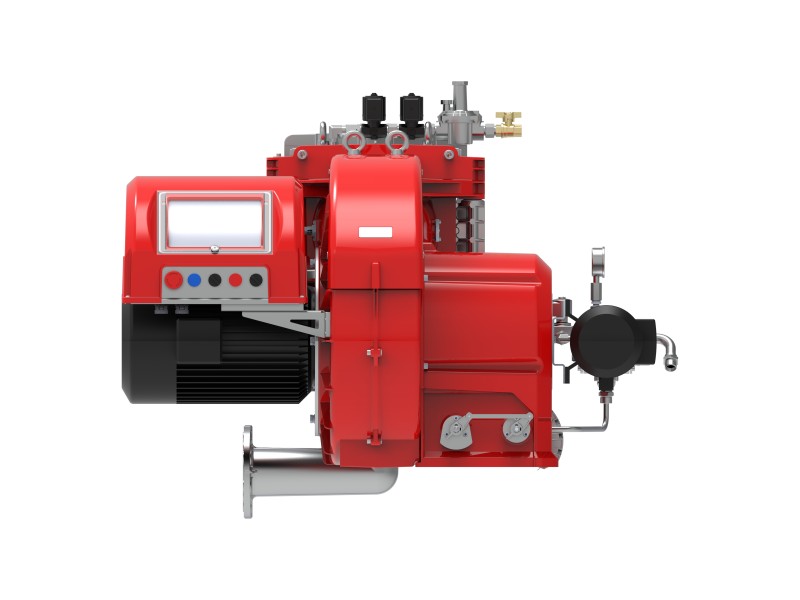

BTN550-650GLC/GLE Series

Two-stage Sliding / Modulating / Electronic Alternate natura Gas / Light Oil Burner

★ Air-gas mixing at blast-pipe and high-pressure mechanical atomisation of fuel using nozzle.

★ Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.

★ Maintenance facilitated by the fact that the mixing unit and the atomisation unit can be removed without having to remove the burner from the boiler.

★ Sliding/Modulating minimum and maximum air flow regulation for first and second stage by means of electric servomotor with pause closure of gate to prevent any heat dispersion to flue.

★ Electronic proportional Using three-phase servo motor respectively to control ratio adjustion among gas, oil and air.

★ Using a flange and high temperature resistant heat insulation pads connected to the boiler.

★ Combustion air intake with air flow adjustment device.

★ Burner air inlet with mute design.

★ High temperature resistant stainless steel disc burner flame.

★ Independent motor drives oil pump.

★ UV ultraviolet phototube detects flame.

★ Electrical plant protection rating Ip40.

  • BTN550GLC Modulating (600~5170 kW)
  • BTN550GLE Electronic (600~5170 kW)
  • BTN550GLC Modulating (1000~6155kW)
  • BTN550GLE Electronic (1000~6155 kW)
contact Us Download Info as PDF
product Details
BTN550-650GLC/GLE modulation/electronic modulation dual fuel gas and light oil burner
Power(kW) Model Clause Number Power Motor power(kW) Package size(L * W * H/mm) Weight(kg)
600~5170 BTN550GLC 203 23 090 380V 50Hz 12+1.5 / /
BTN550GLE 202 23 080
1000~6155 BTN650GLC 202 23 087 15+1.5
BTN650GLE 202 23 082
FAQ

Do you have any working videos?

If you need operation videos, we can film a test run for you before shipping. If we have stock, we can shoot the video.

How does it operate? Is there a manual?

We have installation and operation manuals.

Is there a circuit diagram?

Yes. We can send it if needed.

Do you have any certificates?

We have CE certification and ISO9001.

How long is the warranty period?

The domestic parts on the burner are warranted for 1 year, and imported parts (such as SEIMENS) are not covered by warranty.

What if there is a problem with the burner when we are abroad?

We can provide remote online video guidance to identify and resolve your issue promptly.
