BTN85-150GLR Series

Two-Stage Dual-Fuel Burner
Power From 238 To 1400 kW

Options

  • Two-stage
Side view of the BTN85-150GLR Series Light Oil Burner with extended combustion head.

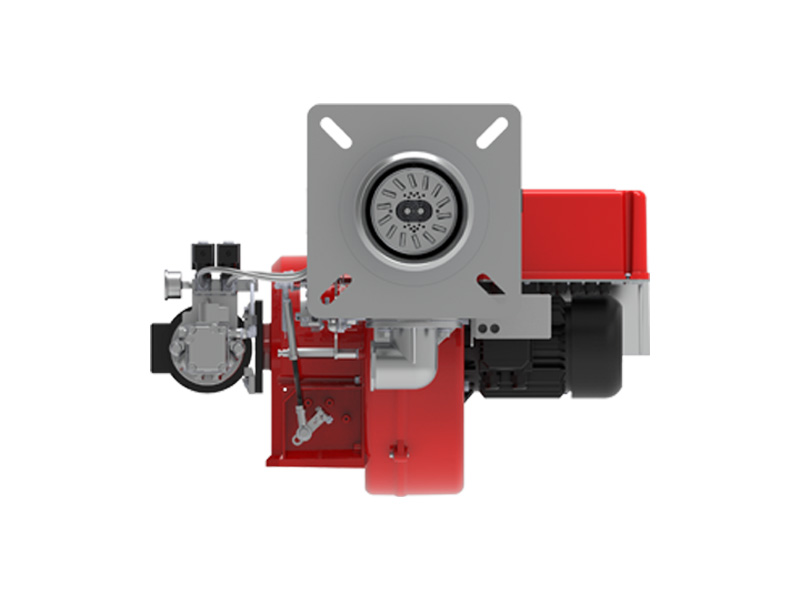

Front view of the BTN85-150GLR Series Light Oil Burner, showing the burner head, combustion outlet and air inlet structure.

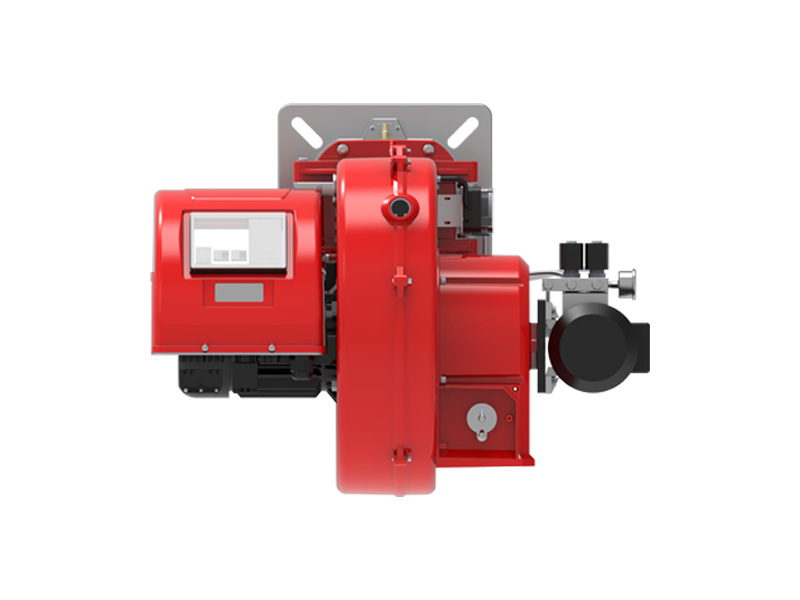

Opposite side view of the BTN85-150GLR Series Light Oil Burner with straight combustion head connection.

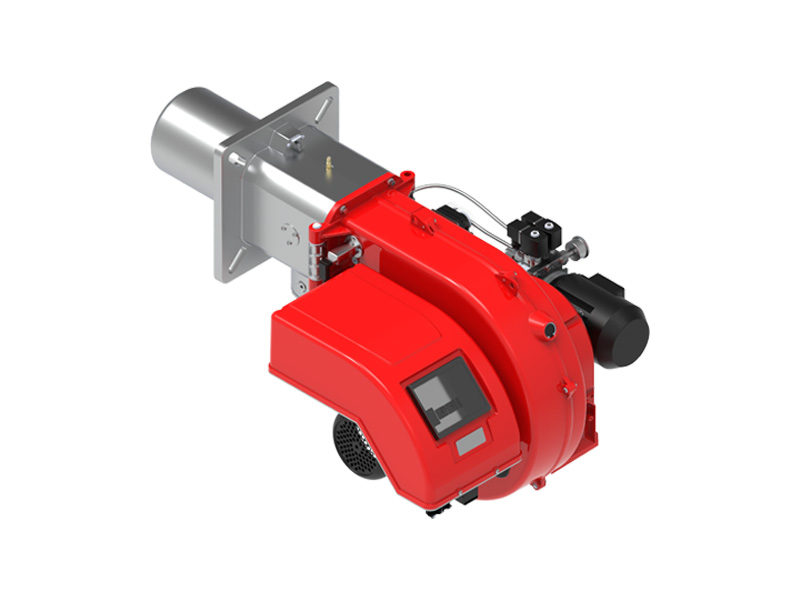

45-degree side view of the BTN85-150GLR Series Light Oil Burner with red housing and combustion head.
Rear side view of the BTN85-150GLR Series Light Oil Burner with side-mounted air section.

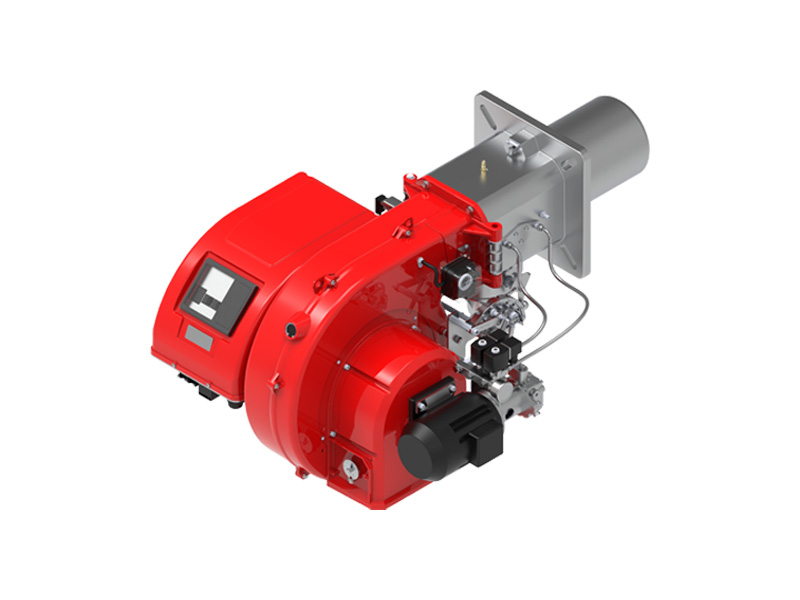

Isometric 45-degree view of the BTN85-150GLR Series Light Oil Burner with rear air fan section.
BTN85-150GLR Series video cover image
3D Model Main features Parameters Download FAQ You May Also Like Contact Us

3D Model

Click to view 3D model

Main features

  • Air-gas mixing at blast-pipe and high-pressure mechanical atomisation of fuel using nozzle.
  • Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
  • Hinged connection, can control the natural open, maintenance is convenient.
  • Servo motor to adjust the air flow.
  • Using a flange and high temperature resistant heat insulation pads connected to the boiler.
  • Combustion air intake with air flow adjustment device.
  • Burner air inlet with mute design.
  • Adjustable blast-pipe with stainless steel nozzle and deflector disk in steel.
  • Two three-phase motor, a drive fan motor, a driving oil pump.
  • UV ultraviolet phototube detects flame.
  • Electrical plant protection rating Ip40.

Parameters

1. General

Model Article No. Power(kW) Power supply Motor power(kW) Package size(L*W*H/mm) Weight(kg)
BTN85GLR 202 22 025 238~820 380V 50Hz 1.1+0.37 1000x1010x755 84
BTN120GLR 202 22 026 348~1165 380V 50Hz 1.5+0.37 1000x1010x755 87
BTN150GLR 202 22 027 368~1400 380V 50Hz 2.2+0.37 1000x1010x755 90

2. Dimension

BTN85-150GLR Series dimensional drawing
Model A1 A2 B1 B2 C D E F G H I L M N P S
mm mm mm mm mm mm mm mm mm mm mm mm M mm mm mm
BTN85GLR 355 394 428 160 1042 250 180 151 G2" 231 320 290 4-M16 170 260 220
BTN120GLR 355 452 428 160 1042 250 180 151 G2" 231 320 290 4-M16 170 260 220
BTN150GLR 355 452 428 160 1072 280 190 151 G2" 231 320 290 4-M16 200 370 320

3. Curve

BTN85-150GLR Series technical size reference image
