BTN85-250GLE BLU Series

Two-Stage Light Oil Burner
Power From 150 To 2400 kW

Options

  • Electronic Modulation

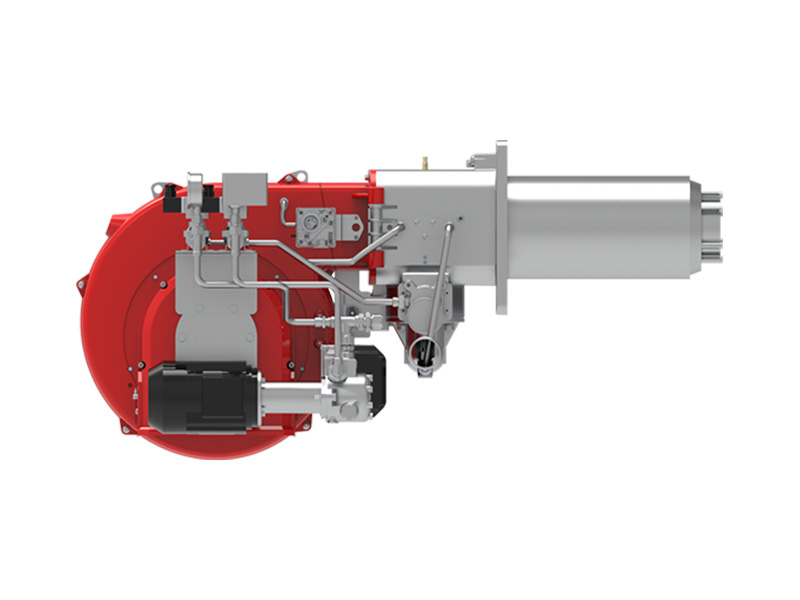

Side view of the BTN85-250GLE BLU Series Gas Burner with extended combustion head.

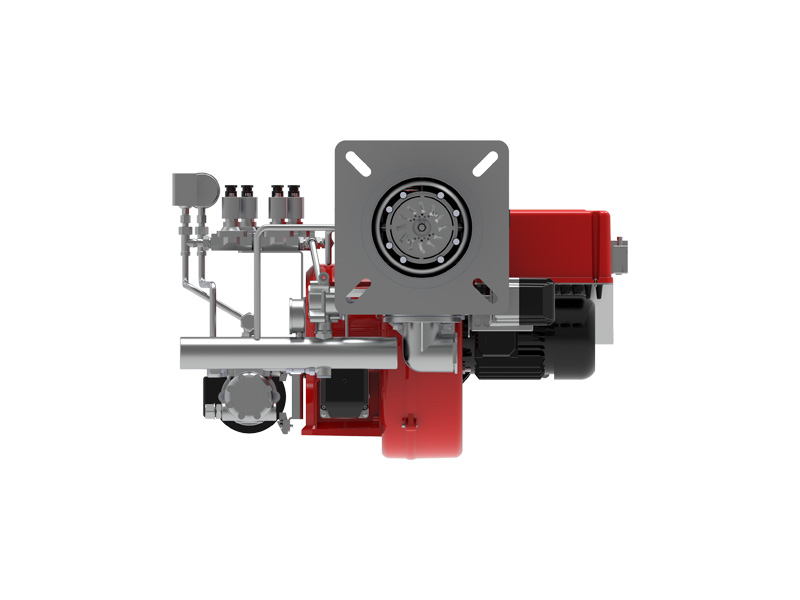

Front view of the BTN85-250GLE BLU Series Gas Burner, showing the burner head, combustion outlet and air inlet structure.

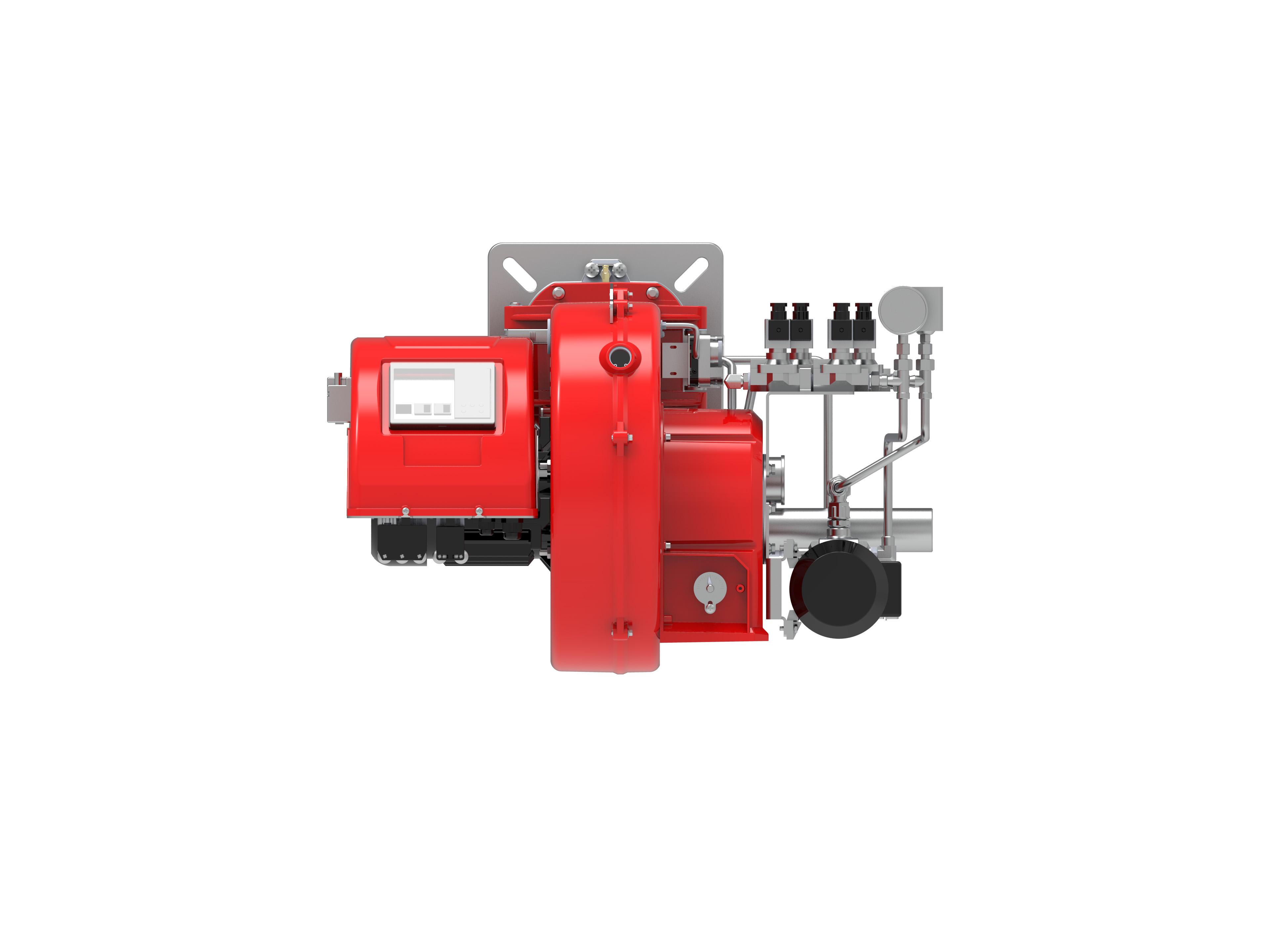

Opposite side view of the BTN85-250GLE BLU Series Gas Burner with straight combustion head connection.

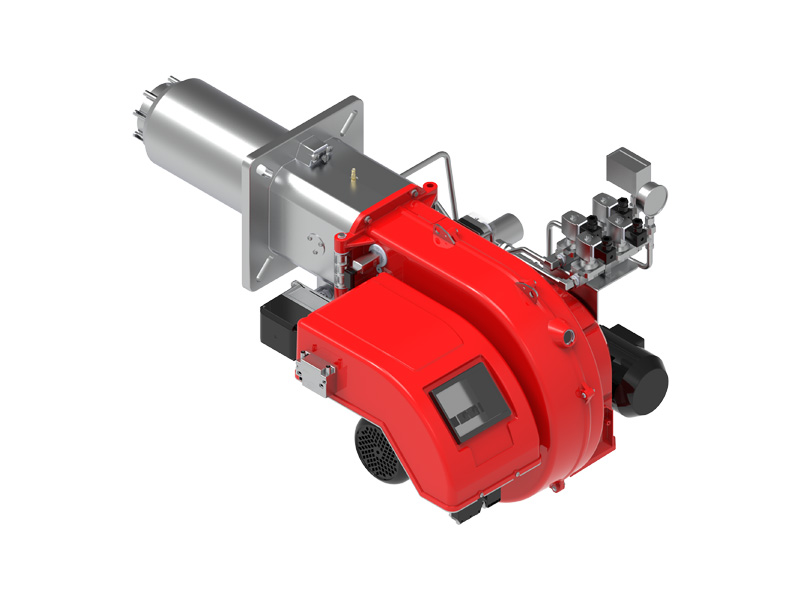

45-degree side view of the BTN85-250GLE BLU Series Gas Burner with red housing and combustion head.
Rear side view of the BTN85-250GLE BLU Series Gas Burner with side-mounted air section.

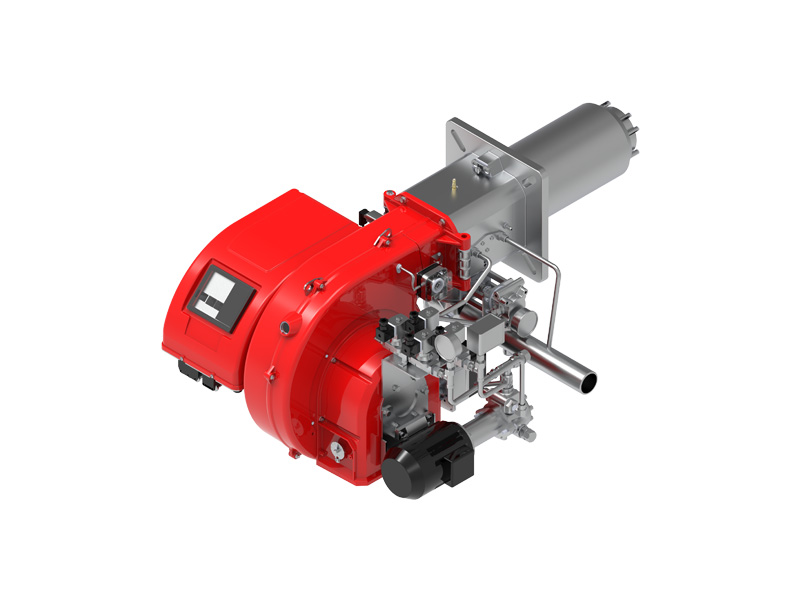

Isometric 45-degree view of the BTN85-250GLE BLU Series Gas Burner with rear air fan section.
BTN85-250GLE BLU Series video cover image
3D Model Main features Parameters Download FAQ You May Also Like Contact Us

3D Model

Click to view 3D model

Main features

  • Air-gas mixing at blast-pipe and high-pressure mechanical atomisation of fuel using nozzle.
  • Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
  • Maintenance facilitated by the fact that the mixing unit and the atomisation unit can be removed without having to remove the burner from the boiler.
  • Electronic proportional Using three-phase servomotor respectively to control ratio adjustion among gas, oil and air.
  • Hinged connection, can be opened naturally, easy maintenance.
  • Combustion air intake with air flow adjustment device.
  • Burner air inlet with mute design.
  • High temperature resistant stainless steel disc burner flame.
  • Independent motor drives oil pump.
  • UV ultraviolet phototube detects flame.
  • Electrical plant protection rating Ip40.

Parameters

1. General

Model Article No. Power(kW) Power supply Motor power(kW) Package size(L*W*H/mm) Weight(kg)
BTN85GLE BLU 203 23 172 150~860 380V 50Hz 1.5+0.55 / /
BTN120GLE BLU 203 23 173 300~1300 380V 50Hz 2.2+0.55 / /
BTN210GLE BLU 203 23 174 300~1860 380V 50Hz 4.5+0.75 / /
BTN250GLE BLU 203 23 175 570~2400 380V 50Hz 5.5+0.75 / /

2. Dimension

BTN85-250GLE BLU Series dimensional drawing
Model A1 A2 B1 B2 C C1 D E F G H I L M N
mm mm mm mm mm mm mm mm mm mm mm mm mm M mm
BTN85 GLE BLU 355 460 430 160 1190 396 335 190 151 G2" 231 320 290-370 4-M16 200
BTN120 GLE BLU 355 460 430 160 1190 396 335 190 151 G2" 231 320 290-370 4-M16 200
BTN210 GLE BLU 355 510 430 160 1290 497 400 190 151 G2" 231 320 290-370 4-M16 200
BTN250 GLE BLU 355 510 430 160 1290 497 400 190 151 G2" 231 320 290-370 4-M16 200

3. Curve

BTN85-250GLE BLU Series technical size reference image

Download

Typology
Edition
Available documents
BTN85-250GLE BLU Catalogue
2025-09
CN/EN - Download
